MULTI-PORT PLASTIC BALL VALVES (3 / 4 Way) PVC - ABS - PP
PVC BUTTERFLY VALVES TO 250MM (PP TO 24")
  --------------------------   A   --------------------------   --------------------------   B   --------------------------   --------------------------   C   --------------------------   --------------------------   D   --------------------------   --------------------------   E   --------------------------   --------------------------   F   --------------------------   --------------------------   G   --------------------------   --------------------------   H   --------------------------   --------------------------   I   --------------------------   --------------------------   J   --------------------------   --------------------------   K   --------------------------   --------------------------   L   --------------------------   --------------------------   M   --------------------------   --------------------------   N   --------------------------   --------------------------   O   --------------------------   --------------------------   P   --------------------------   --------------------------   Q   --------------------------   --------------------------   R   --------------------------   --------------------------   S   --------------------------   --------------------------   T   --------------------------   --------------------------   U   --------------------------   --------------------------   W   --------------------------   ------------- Send Enquiry To Everyvalve ------------
.

Designed for diverting liquid flows along alternative routes/ports Chemicals and water applications are typical uses subject to material of valve etc. Compatibility. All valves are the Ball Plug Type and have PTFE seats & EPDM seals WNS
Type (1) = PVC Valves with Horizontal Entry 'L' Port BSP Or Socket End Lockable Handle as standard.
Type (2) = PVC Valves with Horizontal Entry 'T' Port BSP Or Socket End Lockable. Handle as standard.
Type (3) = Electric & Pneumatic Version of Types.
Type (4) = PP Single Union Valves with Bottom Entry 'L' Port OEM Economy Type. (BSP Female)


 PVC 3 Way (Type 1 & 2)
Actuation (Type 3)

PP Type (4)

PVC BALL VALVE Multi Port Electric & Pneumatic Actuators BALL VALVE L PORT BOTTOM ENTRY

Threaded Or Plain Socket Ends

Electric / Pneumatic

BSP ENDS

3/8" - 1/2"
Data Sheet

3/4" - 2.1/2"
Data Sheet

HQ / HPS
 Electric / Pneumatic

1/4" - 2"
 Data Sheet

' L Port '(HORIZ)
 'T Port' (HORIZ) 'Actuation Options' 'L Port' ( ECONOMY )
Pressure
10 BAR
 10 BAR - 8 BAR
Size
Ref : 10P60A
 Ref :10P60A Electric
Pneumatic
Ref : 10P21
1/4"
-
-
-
-
£ 27.23
3/8"
£118.25
£118.25
-

-
1/2"
£118.25
£118.25
-
 -
£20.57
3/4"
 *
£165.00
£187.00
+ £187.00
+ £110.00
£21.87
1"
 *
£165.00
£187.00
+ £187.00
+ £110.00
£27.83
1.1/4" *
£198.00
 £220.00
+ £187.00
+ £132.00
 £42.35
1.1/2"
*
£198.00
£220.00
+ £187.00
+ £132.00
£56.87
2"
*
£236.50
£258.00
+ £187.00
+ £154.00
£82.28
2.1/2"
*
£480.70
£502.70
+ £187.00
+ £187.00
£ 232.20 SANDWICH TYPE +
3"
 *
£632.50
£682.00
+ £297.00
+ £203.50
£ 244.42 SANDWICH TYPE +
4"
£2,431.00
-
-
-
3" - 4" + Data Sheet
* Mountable / Suitable for Actuation - See Photo Gallery  Or  Page 10B for more details on Actuated Valves.

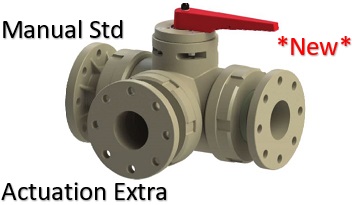

3 Way Flanged Polypropylene Full Bore Ball Valve
Ports
L Port
 T Port Large Bore PP Ball Valve
Pressure
10 BAR
10 BAR
Size
Ref : 10P60A
 Ref :10P60A
2.1/2"
£ 3,877.00
£ 3,877.00
3"
£ 3,877.00
£ 3,877.00
4"
£ 4,455.00
£ 4,455.00



Electric Actuators Operation > Page 38         On Application 2" 'T' Port GFPP 3 way valve E-mail your Enquiry  Ref 10P2220T.
Pneumatic Actuators Operation>Page 38      On Application 2" 'L' Port GFPP 4 way valve E-mail your Enquiry  Ref 10P2221L.
1/4"T = NPT Threaded (Special Compact Style Valve).
Electric & Pneumatic available above ---> plus modulating 0 to 10 volt control if required per special requirement.



PLASTIC BUTTERFLY VALVE RANGES

This light valve gives efficient operation combined with economic cost & corrosion resistance. A slim disc gives good flow qualities + the valve can also be fitted with sockets for ease of cementing straight into pipe with minimum fuss. EPDM seals are standard (FPM is extra). Lever has limit travel positioning notches. Gearboxes for all sizes possible. Do not over torque/tighten bolts when mounting. Options for Electric/Pneumatic Actuation also) PVC Spindle and metal insert. All the are valves are full bodied wafer types.

PVC BUTTERFLY VALVE TO 315mm ( Larger Sizes Available)
Classic Model
Data Sheet Material

 Dimension (SEE BELOW FOR REFERENCE)

Ref: 10P163

Ref: 10P163M
Size A B C E F H L Nm Bar Kg> Wafer Mounted
2"  50mm PVC 193 165 110 28 18*4 48 197 25 10 2 TBA TBA
2.5" 65mm PVC 193 165 110 28

Wafer

 48 197 25 10 2 £ 133.00 TBA
3" 80mm PVC 227 130 126 30 53 260 55 10 3 £ 160.00 TBA
4" 100mm PVC 271 150 157 30 60 260 100 6 4 £ 172.00 TBA
5" 125mm PVC 297 250 172 30 66 260 120 6 4 £ 208.00 TBA
6" 150mm PVC 327 285 185 30 72 260 140 4 6 £ 245.00 TBA
8" 200mm PVC 400 340 230 30 73 390 340 4 9 £ 365.00 TBA
10" 250mm PVC 450 320 250 35 106 GBx 450 3 16 £ 725.00 -
12" 300mm  PVC 566 476 328 39 114  GBx 250  4  23 * £ 2,720.00 * -
* 12" is not full Bodied Type & is Standard Type not the Classic Model

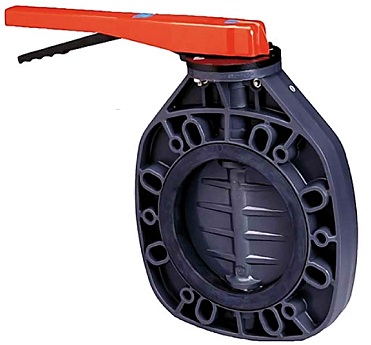

WAFER TYPECepex Classic PVC Butterfly Valve

GLASS FILLED PP BUTTERFLY VALVE EPDM SEALS TO 160mm
(Larger Sizes Available)
Data Sheet Material

 Dimension (SEE BELOW FOR REFERENCE)

Ref: 10P097

Ref: 10P097M
Size A B C D K J Op.  Nm Bar Kg> Wafer EPDM Mounted
 2 63mm GFPP  264 136 50  18X4  125-145 235 Lever  16  10  1.11  £ 122.10 TBA
2.5" 75mm GFPP  264 136 50  18X4  125-145 235 Lever  38  10  1.11  £ 123.20 TBA
3" 90mm GFPP  288 136 57 18X8 146-160 235 Lever   40 10 1.65  £ 139.70 TBA
4" 110mm  GFPP  308 152 60 18X8 178-190 235 Lever  64 10 1.86 £ 176.00 TBA
5" 125mm GFPP  344 170 62 18X8 190 270 Lever  68 10 2.10 £ 198.00 TBA
6" 160mm GFPP  386 214 69 22X8 235-241 270 Lever  76 10 3.04 £ 220.00 TBA
 Larger Sizes on Request, Send us your enquiry

FPM Prices on request. Can be supplied complete with Stub Flanges Backing Rings & Bolts assembled (i.e. mounted)
All dimensions are in mm. Valve is based on NP10 flanges but has elongated holes for BS or ANSI types.
GBx = Gear Boxed.
See Page 10B for more details on Actuated Valves.

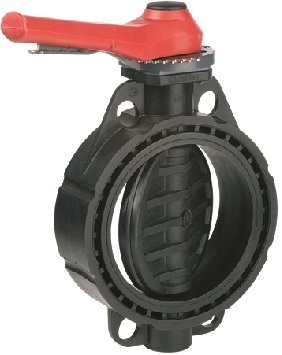

GLASS FILLED PP WAFER TYPE BUTTERFLY VALVE EPDM SEAL ( COLOUR BLACK)

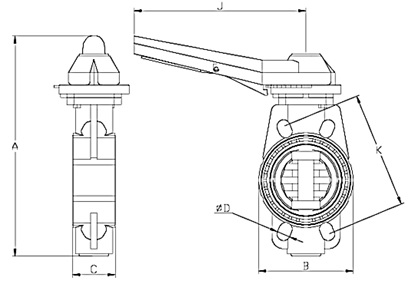

Line Drawing PP Butterfly Valve
