Page 12 | NOV 2022 | Prices in UK £ Sterling | |
Plastic Valves : PVC / ABS / PEHD |

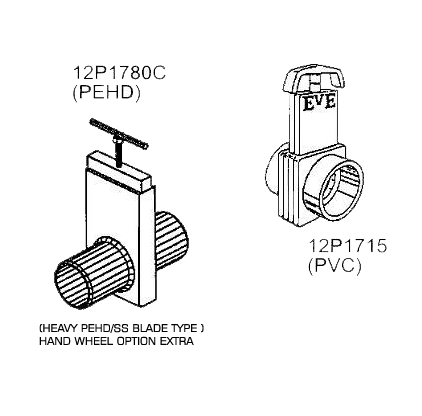

PLASTIC SLIDE GATE VALVES |
||||||||||||||||||||||||||
*
Simple Push/Pull Operation - Quick to Operate - Full Clear Bore * 'S' Type - Cement sockets, Buna seals with sealed head and spindle * 'B' Type - Spigots (Emergency non leak tight version) * Lightweight, Compact & Cheap - Pressures - 10 psi max (Largest) * Applications for Drainage, Clean Water, fish farms etc.. Data Sheets : ABS / PVC |
|
|||||||||||||||||||||||||
Ref
|
Size |
Type |
Mat |
Wt |
Length |
Price |
Price |
|||||||||||||||||||
Imp. |
mm |
Kg |
mm (i) |
Imp |
Metric |
|||||||||||||||||||||
12P1715
|
1.5" |
- |
S |
ABS |
0.26 |
73 |
£ 26.00 |
- |
||||||||||||||||||
12P1715*
|
- |
50 |
S |
PVC |
0.26 |
73 |
- |
£ 26.00 |
||||||||||||||||||
12P1720
|
2" |
- |
S |
ABS |
0.30 |
79 |
£ 38.00 |
- |
||||||||||||||||||
12P1720M
|
- |
63 |
S |
PVC |
0.30 |
79 |
- |
£ 38.00 |
||||||||||||||||||
12P1730
|
3" |
- |
S |
ABS |
0.57 |
114 |
£ 49.00 |
- |
||||||||||||||||||
12P1730M
|
- |
90 |
S |
PVC |
0.57 |
114 |
- |
£ 49.00 |
||||||||||||||||||
12P1740
|
4" |
- |
*S |
PVC |
1.80 |
132 |
£ 187.00 |
- |
||||||||||||||||||
12P1740M |
- |
110 |
*S |
PVC |
1.80 |
132 |
- |
£ 187.00 |
||||||||||||||||||
12P1760 |
6" |
- |
*S |
PVC |
7.00 |
283 |
£ 710.00 |
- |
||||||||||||||||||
12P1760M
|
- |
160 |
*S |
PVC |
7.00 |
283 |
- |
£ 710.00 |
||||||||||||||||||
12P1780
|
8" |
- |
*S |
PVC |
10.00 |
350 |
£ 971.00 |
- |
||||||||||||||||||
Data Sheets : PEHD | PEHD Range | |||||||||||||||||||||||||
12P1779 |
- |
110 |
B |
PEHD |
2.50 |
339 |
Type : GVL |
Send Enquiry | ||||||||||||||||||
12P1780A |
- |
125 |
B |
PEHD |
2.75 |
339 |
Type : GVL |
Send Enquiry | ||||||||||||||||||
12P1780B |
- |
160 |
B |
PEHD |
3.85 |
339 |
Type : GVL |
Send Enquiry | ||||||||||||||||||
12P1780C |
- |
200 |
B |
PEHD |
5.85 |
409 |
Type : GVL |
Send Enquiry | ||||||||||||||||||
12P1781 |
- |
250 |
B |
PEHD |
8.10 |
419 |
Type : GVL |
Send Enquiry | ||||||||||||||||||
12P1782 |
- |
315 |
B |
PEHD |
12.70 |
459 |
Type : GVL |
Send Enquiry | ||||||||||||||||||
12P1783 |
- |
355 |
B |
PEHD |
48.00 |
- |
Type : GVL |
|||||||||||||||||||
12P1784 |
H/W |
400 |
B |
PEHD |
56.00 |
846 |
SVM-TG |
|||||||||||||||||||
12P1785 |
H/W |
500 |
B |
PEHD |
89.00 |
905 |
SVM-TG |
|||||||||||||||||||
12P1785A |
H/W |
600 |
B |
PEHD |
148.00 |
1006 |
SVM-TG |
|||||||||||||||||||
*S = Plain Socket. B = Spigot (Connect with SOCKETS or RUBBER couplers) PEHD = B MM sizes = OD. Pipe Imp for bore (socketed) . PEHD Metric Spigot Type with seals & + Hand wheel now shown 400mm up to 600mm (Heavy makeup with SS blade). *(NB = Slide is in SS) 110mm also available spigoted . Avoid Grit/Sludge. |

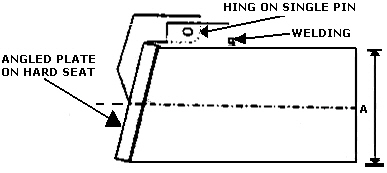

TIDAL FLAP
VALVES IN HDPE ( Complete With Fittings ) Sizes : 125mm To 1,000mm |
||||||
Eve Ref | DN | Type | Fixings | Weight | £/Each | Square Body |
12PMTYPEO40 | 100 | Sq. Body - Round Flap | 4 X M12 | 4 Kg | In Revision | |
12PMTYPEO60 | 150 | Sq. Body - Round Flap | 4 X M12 | 4 Kg | In Revision | |
12PMTYPEO80 | 200 | Sq. Body - Round Flap | 4 X M12 | 5 Kg | In Revision | |
12PMTYPEO81 | 250 | Sq. Body - Round Flap | 4 X M12 | 7 Kg | In Revision | |
12PMTYPEO82 | 300 | Sq. Body - Round Flap | 4 X M12 | 8 Kg | In Revision | |
12PMTYPEO84 | 400 | Hex. Body - Round Flap | 6 X M12 | 11 Kg | In Revision | |
12PMTYPEO85 | 450 | Hex. Body - Round Flap | 6 X M12 | 12 Kg | In Revision | |
12PMTYPEO87 | 600 | Hex. Body - Round Flap | 8 X M12 | 18 Kg | In Revision | |
12PMTYPEO88 | 700 | Multi Body - Round Flap | 13 X M12 | 55 Kg | In Revision | |
12PMTYPEO89 | 800 | Multi Body - Round Flap | 13 X M12 | 60 Kg | In Revision | |
12PMTYPEO90 | 900 | Multi Body - Round Flap | 13 X M12 | 75 Kg | In Revision | |
12PMTYPEO100 | 1000 | Multi Body - Round Flap | 16 X M12 | 85 Kg | In Revision | |
Material Specification | Hex Body | |||||
Frame | HDPE - 300 | |||||
Valve | HDPE - 500 | |||||
Flap Seal | Stainless Steel | |||||
Bolts / Nuts | A4 | |||||
Mountings | See Fixing Details Above | |||||
Max. Pressure | 125mm To 300mm = 1 Bar | |||||
400mm To 1000mm = 0.6 Bar | ||||||
Manual Operation | Lift Handle On Flap As Required | |||||
Fixings Includes :- Studs, Nuts, Resin Cement, Back Seal | ||||||
Metal C.I & S.G Version Tidal Flap Valve On Page 23 |
(Wafer Type) SWING CHECK VALVES in PP |
||||||||||||
Ref | Size | Bore | F/F O.D | Gms | Price | Ref | Size | Bore | F/F O.D. | Gms | Price | |
12P5020 |
2" | 32mm | 20 x 109 | 180 | £ 202.00 | 12P5060 | 6" | 112mm | 26 x 220 | 730 | £ 370.00 | |
12P5025 |
2.5" | 40mm | 20 x 123 | 230 | £ 209.00 | 12P5080 | 8" | 150mm | 35 x 275 | 1460 | £ 821.00 | |
12P5030 |
3" | 52mm | 20 x 137 | 270 | £ 214.00 | 12P5081 | 10" | 190mm | 40 x 330 | 2200 | £ 1,184.00 | |
12P5040 |
4" | 70mm | 22 x 164 | 370 | £ 259.00 | 12P5082 | 12" | 216mm | 45 x 380 | 3600 | £ 1,519.00 | |
12P5050 |
5" | 92mm | 19 x 180 | 500 | £ 295.00 | 12P5083 | 14" | 266mm | 49 x 440 | 5600 | T.B,.A | |
Components:- Body, Disc, Blade & EPDM Standard (FPM Seal / CS/SS Body ring at extra cost). Outside Dias made to suit flange Stds. (F/F=Face to Face in mm. PVC types available. Data Sheet. Full Flow Type '12P24' available 15mm-200mm size for max flow uses. |
(Wafer Type) SPRING CHECK VALVES in PP |
|||||||
Non Return Valve for fitting between flanges in plastic pipework only, ay any angle. The SS closure spring can also be in other materials (Hastelloy C) as can 'FPM; soft seat. Sizes to 300mm. Max pressure usable is 10 bars at ambient. Max 90° C. Cracking pressure is 0.02 bar approx. Fits between 4504/BS10 & 1560 flanges. PVC & PVDF available with changed Spec. & price. Applications for water, chemicals & air. Avoid shock use & dirt. | |||||||
Ref |
Bore | Size | F/F x O.D. | Bolt Torque | Gms | Price | |
12P6005 |
15mm | 1/2" | 35mm x 45mm | 1.5kg/m | 80 | In Revision | |
12P6007 |
20mm | 3/4" | 35mm x 55mm | 1.5kg/m | 90 | In Revision | |
12P6010 |
25mm | 1" | 40mm x 64mm | 1.8kg/m | 92 | In Revision | |
12P6010 |
32mm | 1.25" | 40mm x 25mm | 1.8kg/m | 120 | In Revision | |
12P6015 |
40mm | 1.5" | 42mm x 95mm | 2.0kg/m | 150 | In Revision | |
12P6020 |
50mm | 2" | 44mm x 95mm | 2.5kg/m | 150 | In Revision | |
12P6025 |
60mm | 2.5" | 71mm x 111mm | 2.5kg/m | - | In Revision | |
12P6030 |
75mm | 3" | 75mm x 125mm | 2.5kg/m | - | In Revision | |
12P6040 |
100mm | 4" | 100mm x 159mm | 3.0kg/m | - | In Revision | |
12P6060 |
150mm | 6" | 133mm x 216mm | 4.0kg/m | - | In Revision | |
12P6080 |
200mm | 8" | 197mm x 253mm | 4.0kg/m | - | In Revision | |
Components:- Body, Poppet, Spider, Spring & Seal (F/F=face to Face) UPVC versions can be supplied at 10%+ extra on above prices. |
